Description

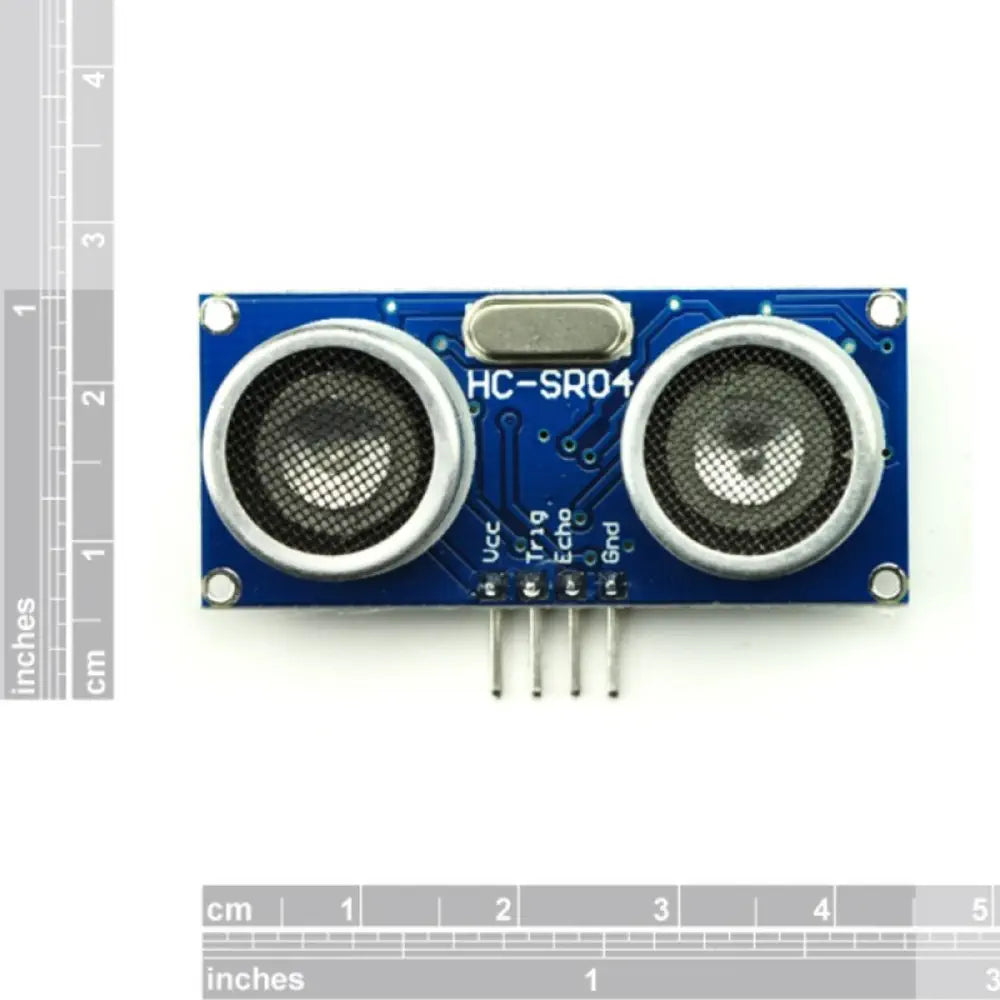

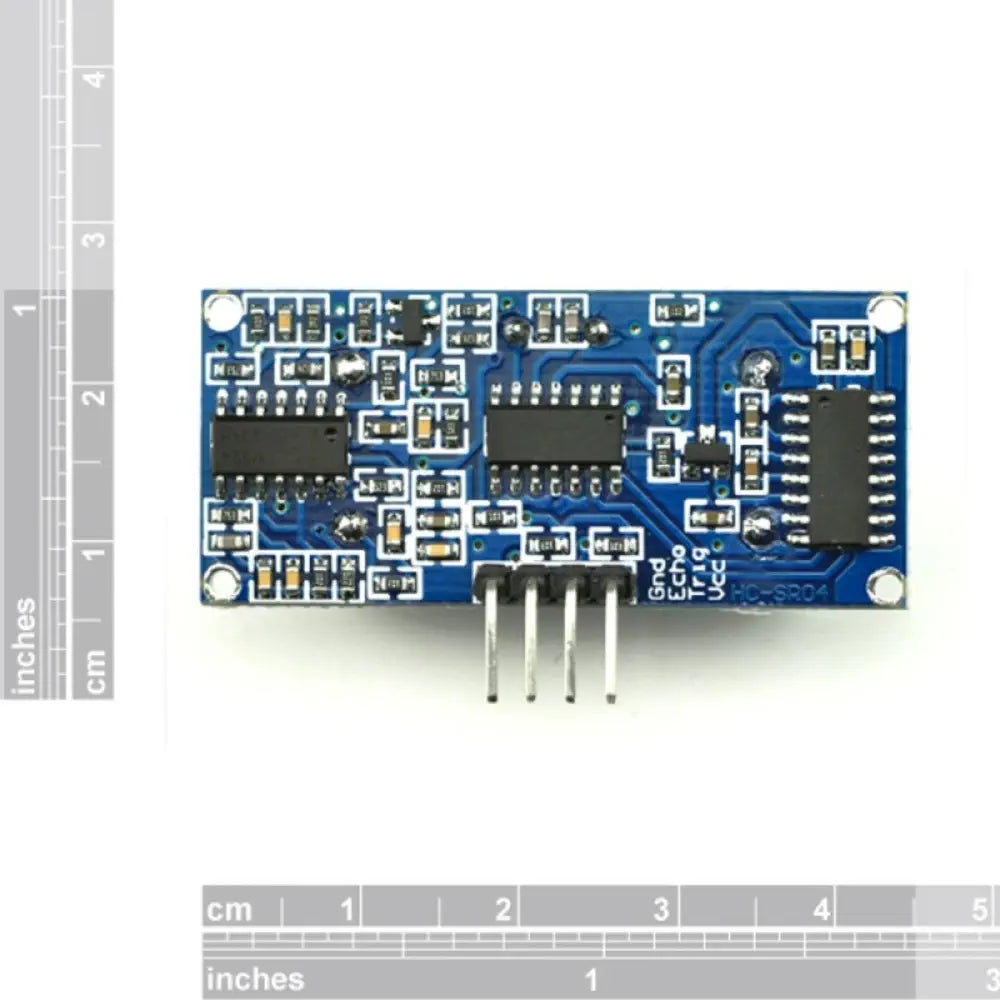

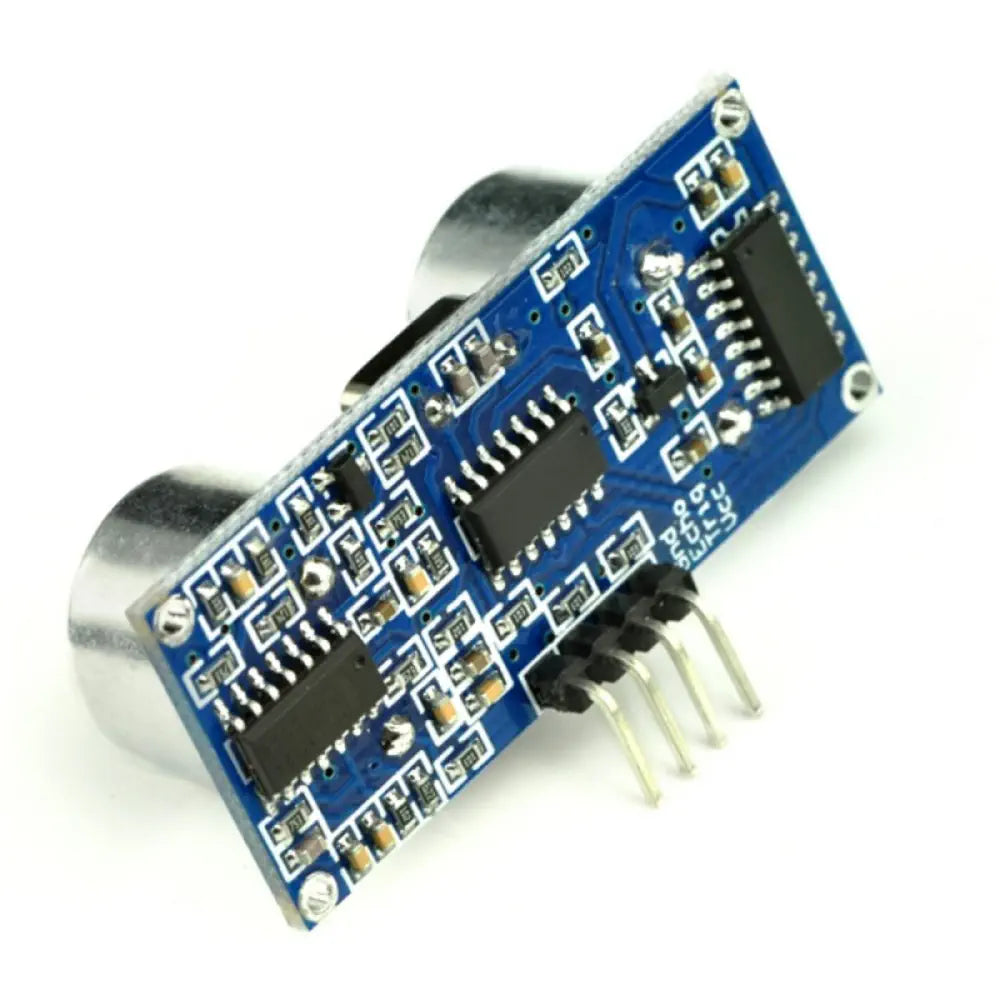

  • HC-SR04 Ultrasonic Range Finder
  • Offers a detecting range of 3 - 400 cm
  • Works best in a 30-degree angle
  • Provides an electronic brick compatible interface
  • Is breadboard friendly and Arduino library ready

This HC-SR04 Ultrasonic Range Finder is a non-contact distance measurement module which is compatible with the Arduino or another system. It’s designed for easy modular project usage with industrial performance. The module has a detecting range of 3 to 400 cm.

  • 1 x HC-SR04 Ultrasonic Range Finder

Size

  • 43 x 20 x 15 mm
  • Supply voltage: 5 V
  • Global Current Consumption: 15 mA
  • Ultrasonic Frequency: 40k Hz
  • Maximal Range: 400 cm
  • Minimal Range: 3 cm
  • Resolution: 1 cm
  • Trigger Pulse Width: 10 μs
